Add a design in the Template Builder

DecoNetwork's Template Builder lets you create design templates that your customers can easily customize and create unique products with. With the template Builder it is easy to turn designs into design templates. This guide will show you the various ways to can add designs in the Template Builder.

Prerequisites

• You must have administrator access to use this feature

Click on a link below to learn how...

• To access the Template Builder
• To add a design in the Template Builder using the Add Image button
• To add a design from your computer into the Template Builder by drag and drop
• To add a design in the Template Builder from the Image Libraries

To access the Template Builder:

1. Log into your DecoNetwork Website.

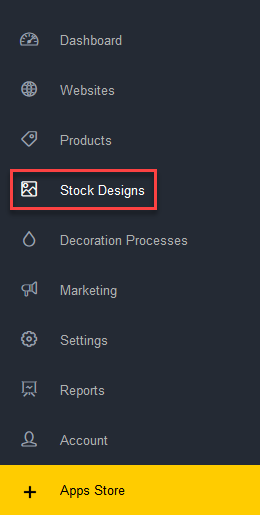

2. Browse to Admin > Stock Designs.





3. Select Stock Designs List.

4. Click the Add Design button in the Breadcrumb & Action bar and click Create Template from the drop-down menu.

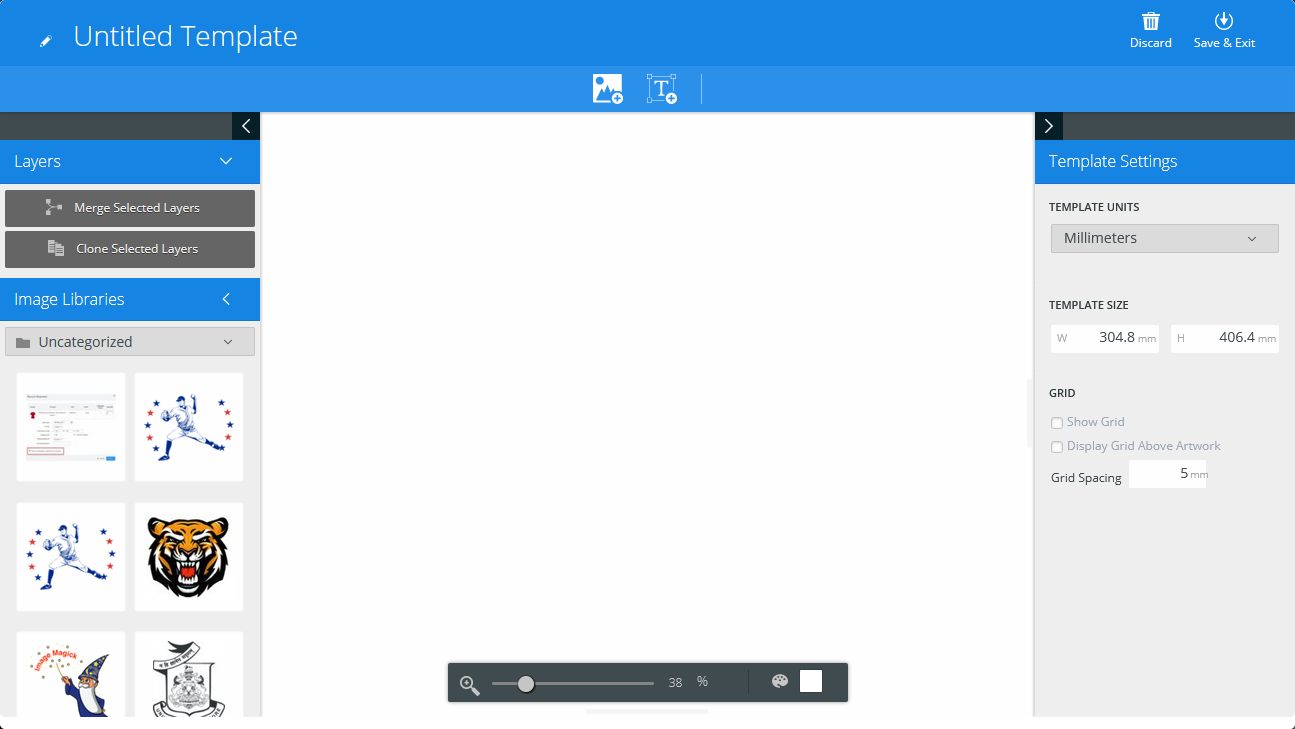

   The Template Builder app is loaded in the window.



To add a design in the Template Builder using the Add Image button:

1. Click on the Add Image button in the top Insert Toolbar.

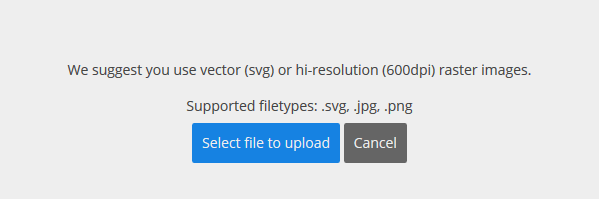

   The Add Image popup will be displayed.


2. Click the Select file to upload button.

   The File Upload popup will be displayed.

3. Select the design file you want to add and click Open.

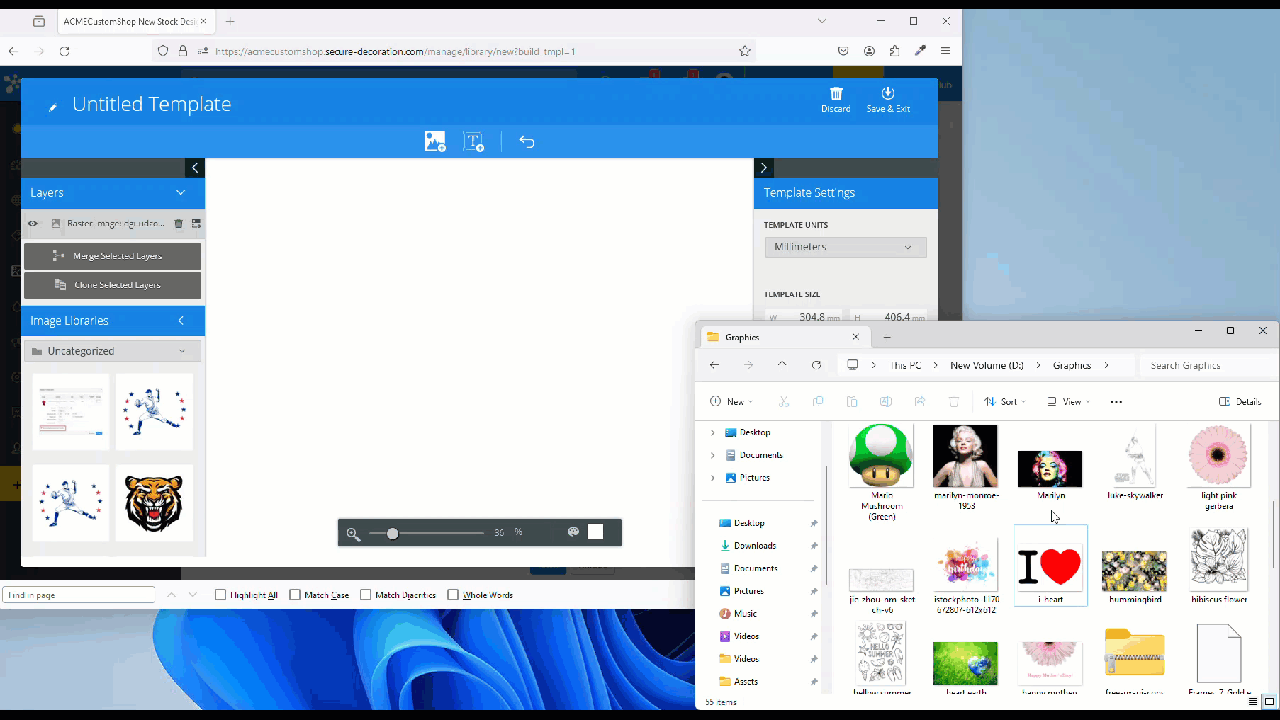

To add designs from your computer into the Template Builder by drag and drop:

1. Drag a design file from your computer file system into the design canvas in the Template Builder.

   The design canvas border will become bold when the mouse pointer is within its boundaries.


2. Release the mouse button to drop the design into the design canvas.

   The design will be inserted into the design canvas at the position that it was released.

To add a design in the Template Builder from the Image Libraries:

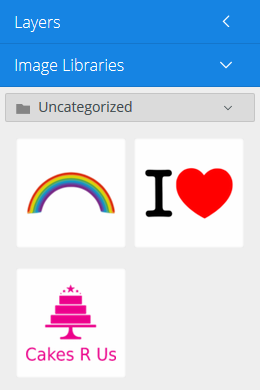

1. If not already expanded, click on the Image Libraries tab in the Arrange Panel to expand it.

   The Image Libraries tab expands to show designs that you have previously uploaded.


2. Click on the category list and select the category you want to choose a design from.

3. Click on a design to add to insert it into the middle of the design canvas.

   OR

   Drag a design from the image library into the design canvas and release it in the position you want it to be placed.
