Shopify & DecoNetwork Integration Part 4: DN Product Mapping Guide

Shopify integration in DecoNetwork (DN) allows you to efficiently manage and fulfill orders from a Shopify store. To ensure a smooth order fulfillment process, it’s important to understand how to download and manage Shopify store products in your DN store. This guide will walk you through the steps to download products from your Shopify store into the connected DN affiliate store and map them to the appropriate products and designs.

In this article...

• To download products from Shopify
• Filtering Products by Status
• Mapping Products
• Mapping Designs

To download products from Shopify

The ability to download and manage products directly with the Shopify Order Fulfillment App enables you to keep your product catalog in your DN store up-to-date with the connected Shopify store. This integration streamlines the fulfillment process by ensuring that the products you offer on Shopify are accurately reflected and managed in DN.

1. Log into your DecoNetwork website.

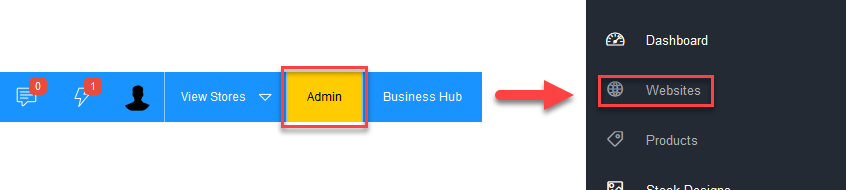

2. Browse to Admin > Websites.


   Click on the Manage button beside the store you want to configure.

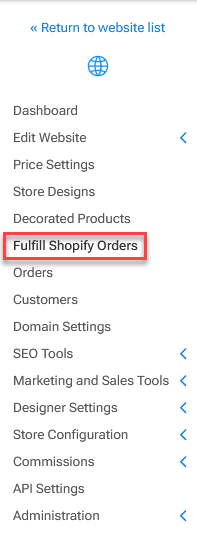

3. Select FulFill Shopify Orders from the Store menu.

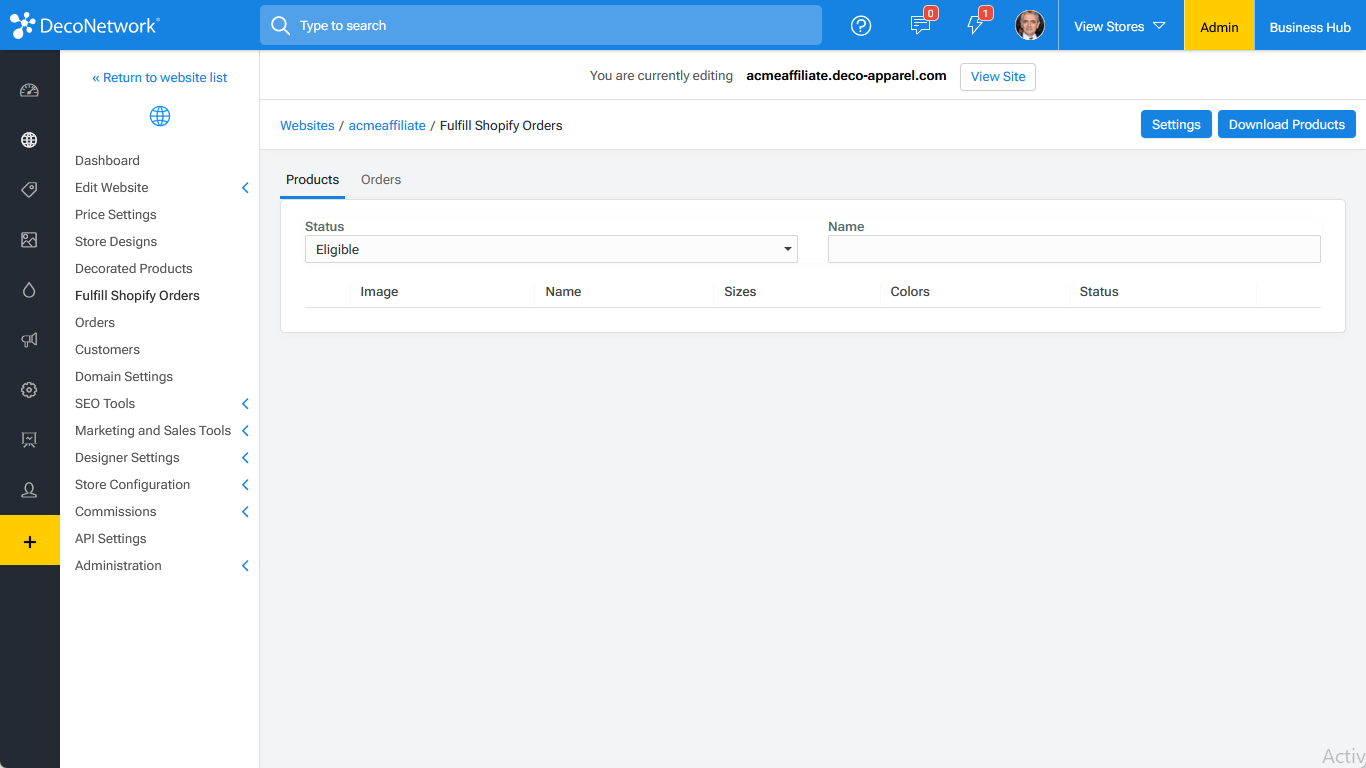

   The Fulfill Shopify Orders page is loaded in the work area.





   Click the image to enlarge.

4. Click on the Download Products button.

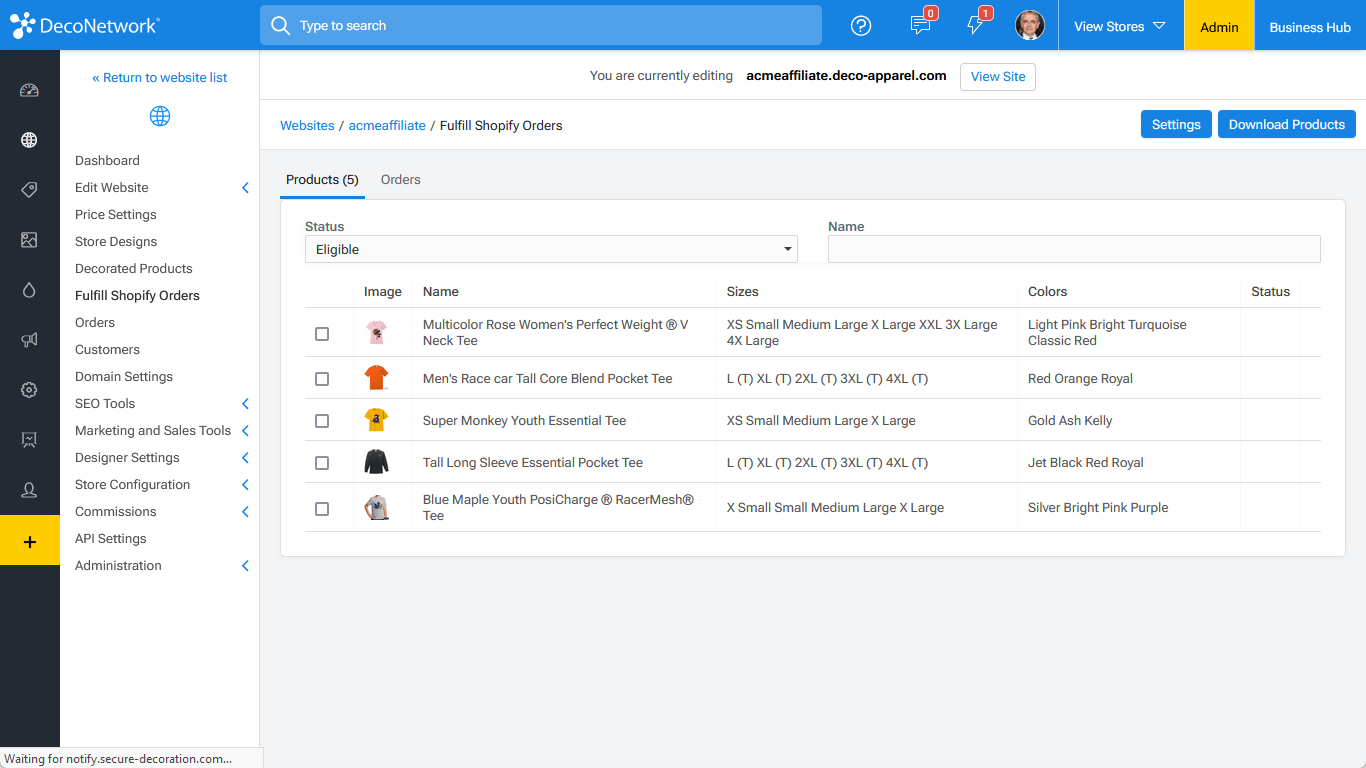

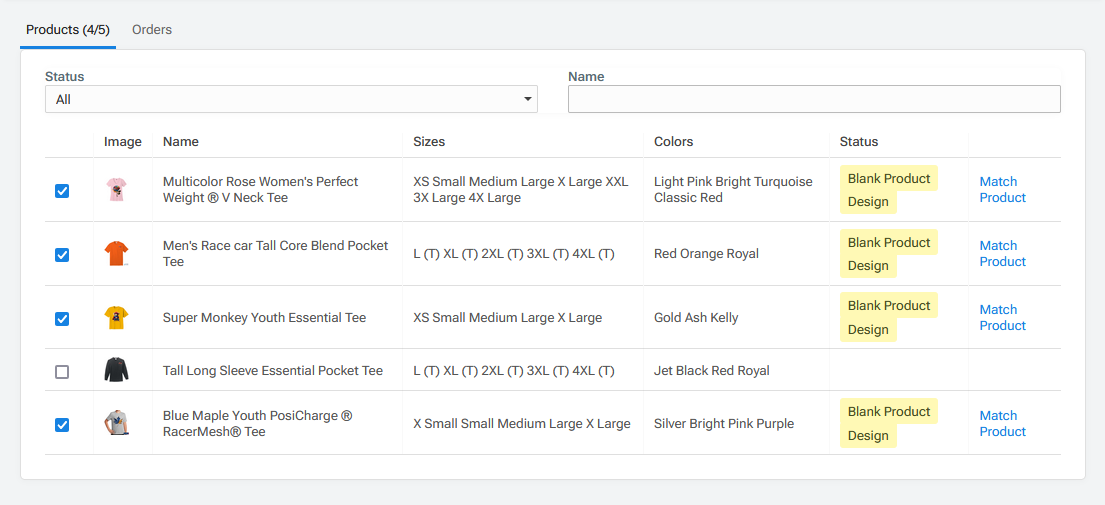

   Once downloaded, products from your Shopify store will be listed in the Products tab of the Fulfill Shopify Orders page.





   Click the image to enlarge.

Filtering Products by Status

Managing products effectively involves filtering them by their status to focus on what needs attention. Here’s how to filter products by their status in DN:

1. Navigate to the Fulfill Shopify Orders Page.
2. Tick the checkboxes of all the products you want to fulfill.

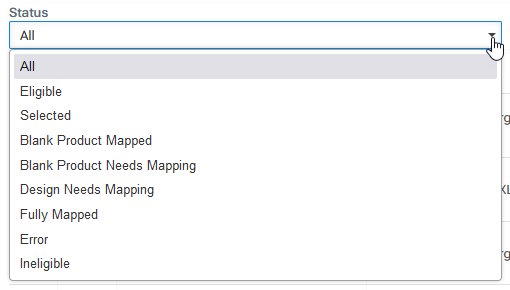

3. Click on the Status field located at the top of the product list.


4. Select the desired status.

   • Eligible: Products that meet all the criteria for integration or processing but have not yet been selected or mapped. These products are ready for the next steps in your workflow, such as mapping or assigning designs.
   • Selected: Products that have been chosen for mapping or further action. They are in the queue to be worked on, meaning that you or your team have marked them for processing.
   • Blank Product Mapped: Products that have been mapped to a blank product but lack designs. This status indicates that the basic blank product mapping is complete, but the product still needs design mapping.
   • Blank Product Needs Mapping: Products that have not yet been mapped to any blank product. These products are awaiting the initial mapping process, which involves associating them with the appropriate blank products in your product catalog.
   • Design Needs Mapping: Products that have been mapped but still require a design to be assigned. This status indicates that while the product has been mapped to a blank product in your catalog, the design element is missing and needs to be assigned.
   • Fully Mapped: Products that have been thoroughly mapped to a both design and a blank product. This means that each product has a designated design and is associated with a specific blank product variant. Consequently, all necessary details for both the customization and production processes are in place, ensuring that the product is ready for order fulfillment.
   • Error: Products that encountered issues during the mapping process or integration. These errors could be due to data inconsistencies, missing information, or other problems that need to be resolved before the product can proceed.
   • Ineligible: Products that do not meet the criteria for mapping or integration, either due to missing critical information, unsupported formats, or other reasons. These products are excluded from the current mapping process and may require adjustments or re-evaluation.

     To reset the filter, select the option, “All”

Mapping Products

Mapping products is essential for ensuring that product data from Shopify integrates correctly into DN. Here’s how to map products:

1. Navigate to the Fulfill Shopify Orders Page.
2. Tick the checkboxes of all the products you want to fulfill.

3. Identify Unmapped Products.

   The Status column is color-coded so that you can identify unmapped blank products and designs at a glance. Unmapped blank products/designs are highlighted in yellow.



   Mapped blank products/designs are highlighted in green.



   You can use the Status filter to look for unmapped products by selecting "Blank Product Needs Mapping".



   These are the products that require mapping.

4. Click on the Match Product command for the product you want to map.

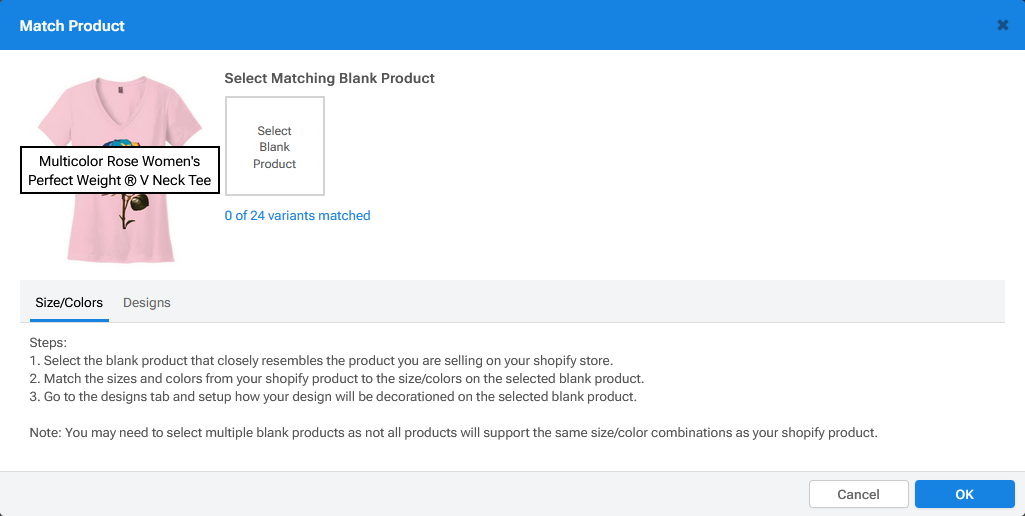

   The Match Product popup appears containing the matching options for the product.


5. Click on the Select Blank Product box.

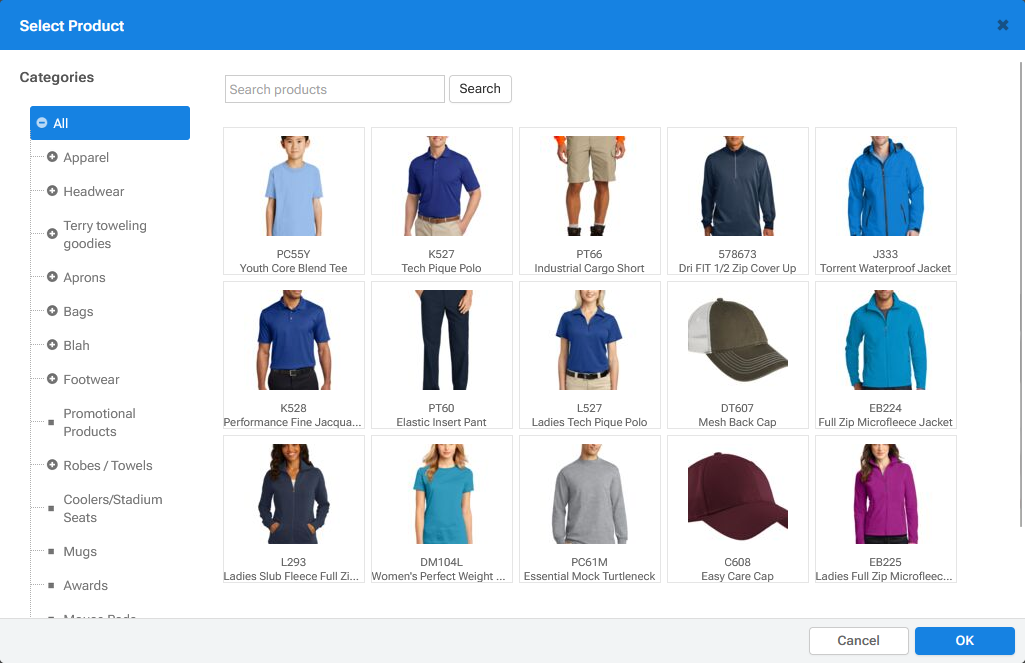

   The Select Product popup appears.


6. Search for the matching product and click on it to select it.

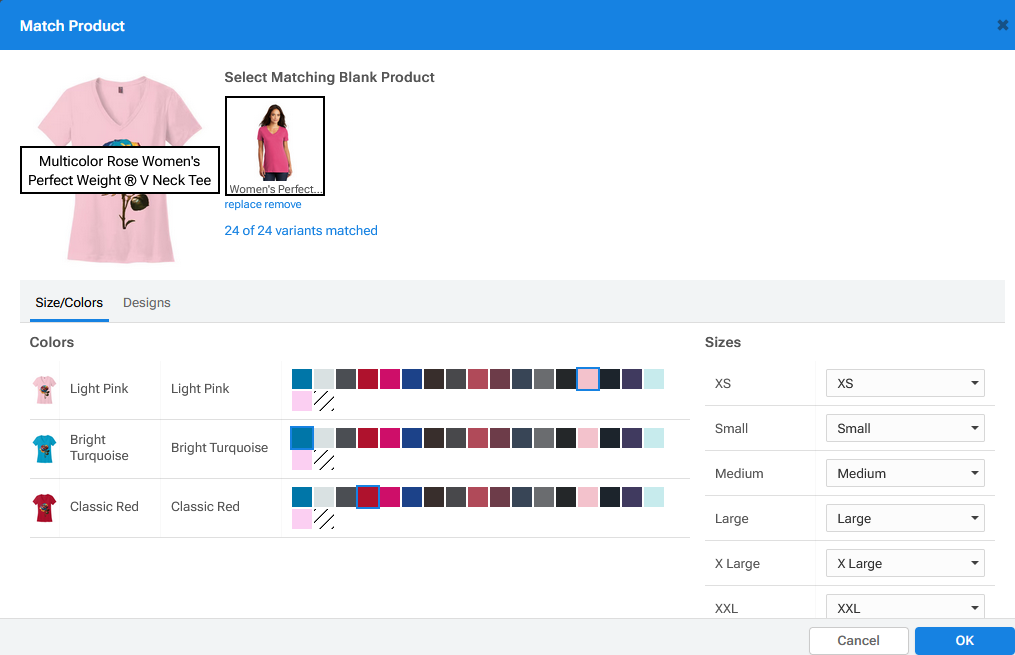

   The variants of the Shopify product are matched with the variants of the selected blank product.


7. Click OK in the Match Product popup.

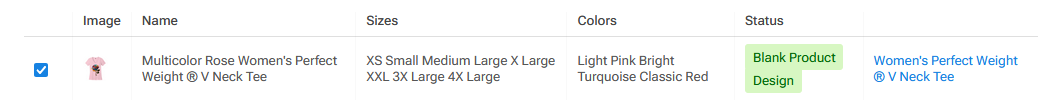

   The "Blank Product" status be highlighted in green once a blank product has been successfully mapped. If a design was uploaded for the product in Shopify before it was downloaded into the DecoNetwork store, the "Design" status will also be highlighted in green.



   To see the mapped design, click on the product name, then click on the Designs tab in the Match Product popup.



Mapping Designs

If a design was uploaded to the product in Shopify before it was downloaded into the DN store, DN will automatically recognize the design as mapped. However, if no design was uploaded, you will need to complete this step manually. Before mapping designs in DN, make sure the product is already mapped. Here’s the process for mapping designs:

1. Confirm Product Mapping.

   Make sure the product is already mapped. If not, refer to the tutorial above on mapping products.



   Mapped products are marked with a green "Blank Product" status. Additionally, the product name appears instead of the "Match Product" command.

2. Click on the mapped product name to open the mapping options for a product.


   The Match Product popup appears.

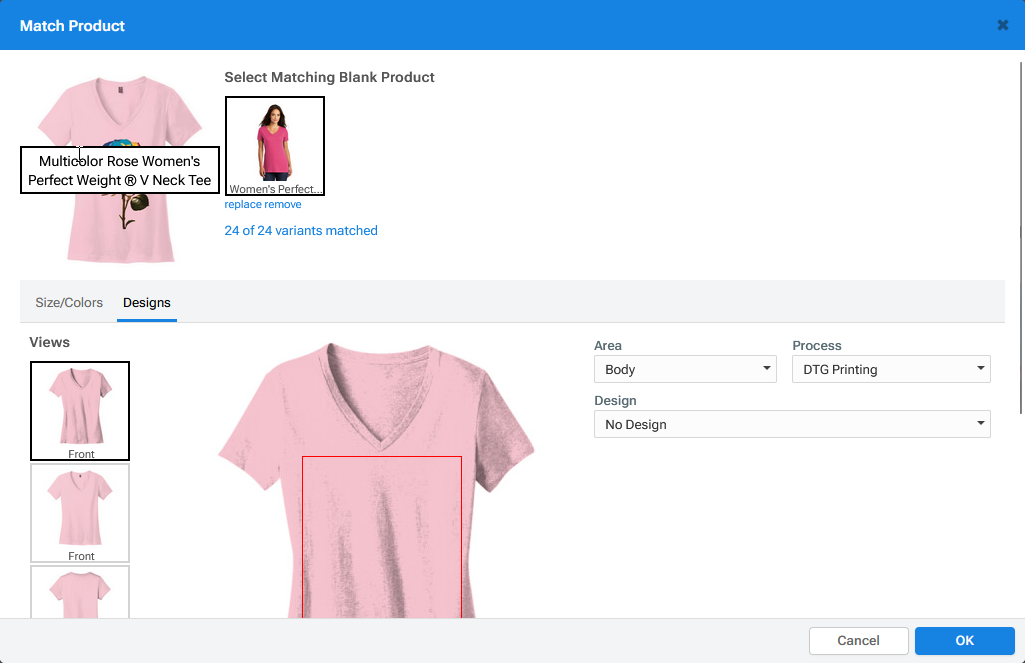

3. Select the “Designs” tab to access the design matching options.

   • Area: Lets you choose where the design will be positioned; Body, Left Chest, or Right Chest.
   • Process: Lets you choose the default decoration process.
   • Design: Lets you to decide if the mapped product will include a design. If it does, you can then select the design to apply.

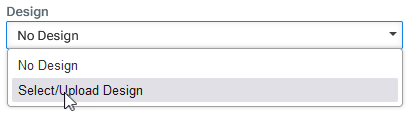

4. Click on the Design field and choose Select/Upload Design from the dropdown list.

5. Click on the Select Design command that appears.

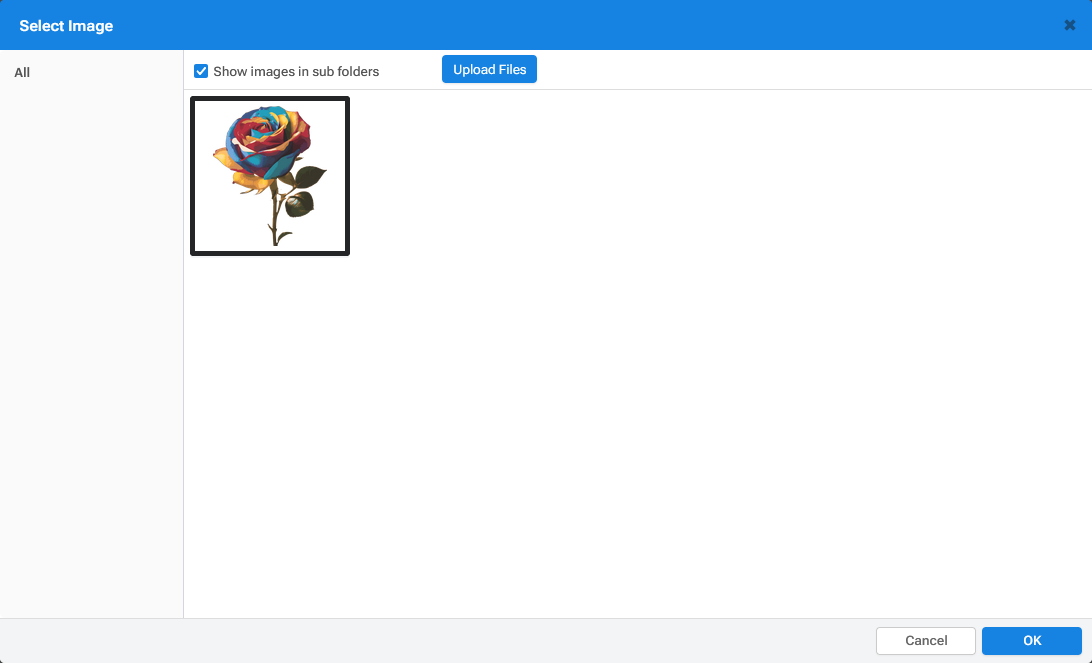

   The Select Image popup loads.


6. Select an already uploaded design or click on the Upload Files button to search for the design on your device.
7. Click OK once you have uploaded and selected the design to be mapped.

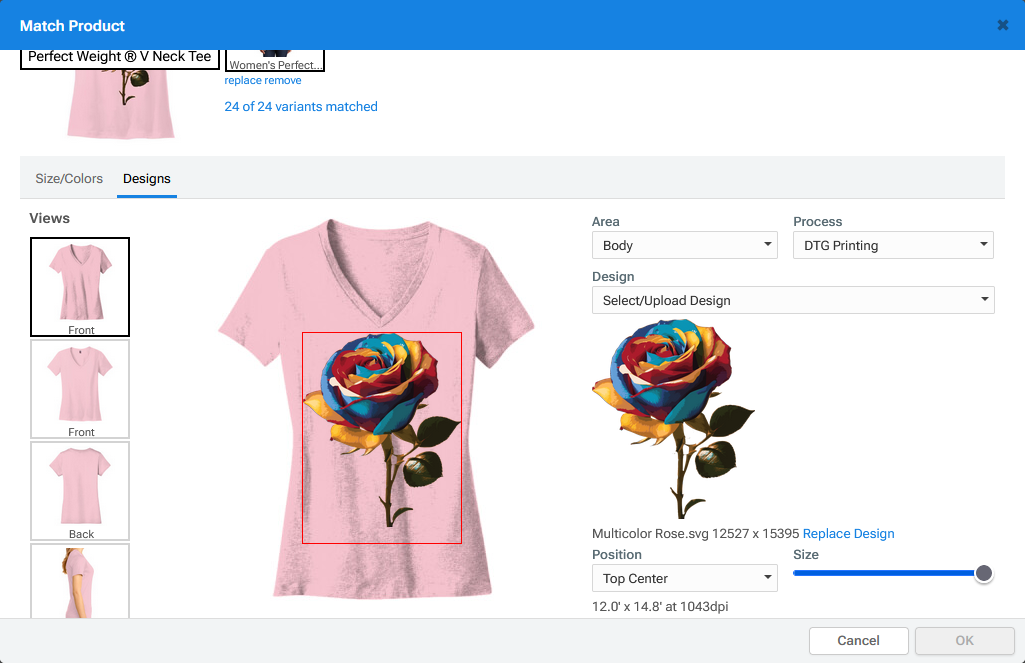

   The design is placed on the product in the selected area.

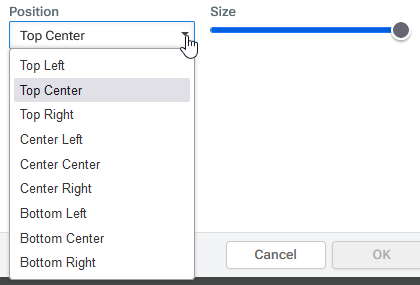

   You can choose the position of the design and adjust its size.


8. Adjust the Area, Process, Position and Size as necessary.
9. Click OK.
